Surveillance Grade Megapixel Solutions

Benefits

Precise high quality images resulting in strong evidence and positive identification
Wider/very large surveillance coverage area and therefore less cameras required than traditional CCTV
Near Infrared Sensitivity allowing users to see beyond human vision at night
Less cameras required resulting in less-man hours to install, maintain and fewer cables

Overview

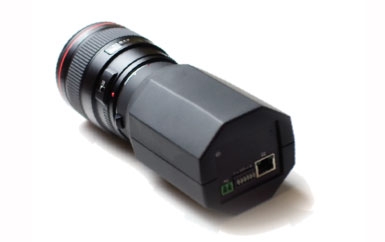

Avigilon has developed a range of ‘surveillance grade’ Megapixel cameras and recording solutions which capture high quality, highly detailed video images, enabling clear facial and number plate recognition and therefore resulting in positive identification.

With the appropriate lens, Megapixel provides you with the ability to not only take a singe ‘wide angle’ view of your surveillance target, thereby reducing the need for multiple cameras in a single observation post, but also to locate the camera at a substantial distance away from any surveillance aware target.

Designed for the most demanding surveillance applications, Megapixel cameras feature Near Infrared Sensitivity allowing for objects to be seen beyond human vision at night, as well as having Wide Dynamic Range which captures details in scenes with both very bright and very dark areas.

Applications

Avigilon Megapixel camera and recording solution are ideal where the level of detail is extremely important and precision is required.

Specification

Camera:

16 Megapixel

Image Sensor: 35 mm progressive scan interline transfer CCD
Active Pixels: 4872 (H) x 3248 (V)
Minimum Illumination: 0.1 lux (at F1.4)
Dynamic Range: 65 dB
Lens Mount: EF (SLR-style bayonet)
Image Compression Method: JPEG2000
Image Rate: 3 (at full resolution) 10 (at 4872 × 480
Resolution Windowing: Down to 640 × 480 Window
Motion Detection: Selectable sensitivity and threshold
Electronic Shutter Control: Automatic, Manual (2 to 1/60000 sec)
Iris Control: Automatic, Manual
Focus Control: Automatic, Manual
Flicker Control: 50 Hz, 60 Hz
White Balance: Automatic, Manual
Backlight Compensation:Automatic
Privacy Zones: Up to 4 zones
External I/O Terminals: Alarm In, Alarm Out, RS-485

11 Megapixel

4.2 Megapixel

2 Megapixel

Network:

Network: 100BASE-TX
Cabling Type: CAT5
Connector: RJ-45
Security: SSL
Protocol: UDP, TCP, SOAP, DHCP, Zeroconf

Mechanical:

Dimensions (LxWxH): 120mm x 79mm x 74mm
Weight: 1.15KG without lens
Camera Mount: 1/4” UNC-20 (top and bottom)

Electrical:

Power Source: VDC: 12-24 V, VAC: 24 V, PoE: IEEE802.3af Class 3 compliant
Power Consumption: 9 W
Power Connector 2-pin terminal block

Environmental:

Power Source: -10 °C to +50 °C (14 °F to
