Horizon TM R - IP68 Rated Video & Audio Transmission Solution

Roll over thumbnail images to view larger version

Benefits

Digital evidential quality recording
Ruggedised to IP68 – can be used in harsh environments
Ultra low power consumption
Multiple secure viewing options
Unique image enhancement whilst viewing live streams
Unique video retrieval – without visiting the front-end

Request a demo

Overview

3G Horizon TM R IP68 Rated Video & Audio Transmission Solution Introduction

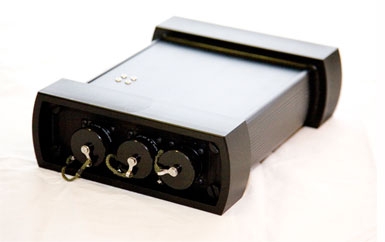

Horizon TM R is a specially designed device which provides instant, real time, high quality video and audio transmission across mobile phone networks.

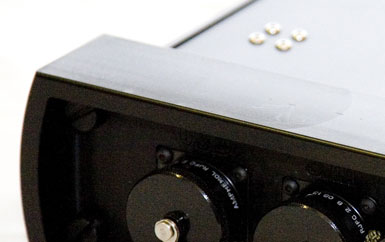

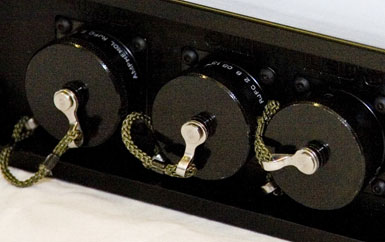

Ruggedised to IP68 rating, the Horizon TM R can be buried and is waterproof up to a depth of 1.5m making in ideal for harsh environments.

Providing plug and play connectivity for a single camera, Horizon TM R can be rapidly deployed to quickly provide images and audio back to any command and control centre, remote monitoring station or remote personnel.

Horizon TM R utilises mobile phone networks – including 3G, HSDPA, HSUPA and even low bandwidth GPRS to transmit high quality video and audio. It can also be used with a variety of other networks including broadband, satellite, Wi-Fi and Wi-Max where available

HORIZON TM R can be powered from 240 volt mains or by 12 volt supply using battery solutions such as POWERCORE from Tellemachus.

Also available within the HORIZON TM range are
HORIZON TM4 is a ruggedised transmission and recording solution
HORIZON TM Recorder is an IP68 rated recording solution

Applications

Horizon TM R is ideal for use when live video and audio is required immediately and where no fixed infrastructure is readily available.

Specification

Hardware:

Physical: L 240mm x W 187mm x D 70mm. Weight 1Kg IP68 Rated
Camera Input: 1 x BNC composite input
Operating Temperature: -32º to +65ºc, non-condensing
Video Input Format: PAL/NTSC/SECAM
Audio: Stereo Audio In/Stereo Audio Out
1 Alarm Input: Triggers at 5V (24V mx)
Input Voltage: 9V-36V DC
Power Consumption 6W Max 3W Nominal <1W Standby Mode <0.1 Sleep Mode

Communications:

Internet Connectivity: 10/100 RJ45 Ethernet connector for ADSL and Network Lines
PTZ Connectivity: Camera can be controlled vis RS232 or RS485. Currently supports Pelco P&D, Canon VC-C4/5, Sony Visca, DH Cylinder Cam, Cam, Other protocols. Maybe Integrated on request.
GPRS /3G/HSDPA: Built in GPRS/3G/HSDPA Module
Bandwidths Supported: 9Kbps to 1Mbps
Satellite Connectivity: 10/100 RJ45 Ethernet or Inmarsat GAN/BGAN Fleet Routers

Software:

Viewers Supported: Software available for Windows PC, and Windows Mobile 5/6
Video Frame Sizes Supported: From 100×120 up to 352×288 (CIF) at frame rates of 0.1 to 25fps (PAL)
High Resolution Image Retrieval: Enhanced definition (up to 704×576) over user-definable areas via high quality JPEG
Encryption: Built in AES 256 encryption in addition to support for IP Sec VPN Connections
Minimum Server Specification:2GHz Processor, Windows Server 2003 or Linux preferred, 512Mb RAM, Sun Java JRE 1.5.0 or later

Part Numbers:

TEL-HT-0046 Horizon TM Mini R Codec
