Powercore

Roll over thumbnail images to view larger version

Benefits

Lighter – less than half the weight of similar sized lead-acid batteries
Longer run time – double the run time of lead-acid batteries
Intrinsically sealed using non-hazardous materials (won’t explode)
Smaller form factor
Maintenance free rugged mechanical design – water resistant, crush proof, dust and corrosion resistant

Request a demo

Overview

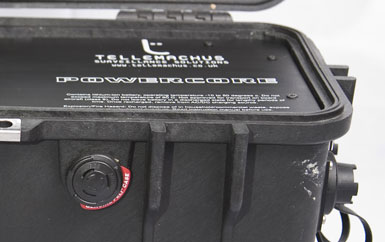

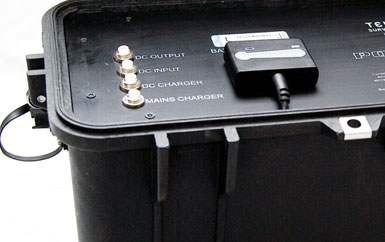

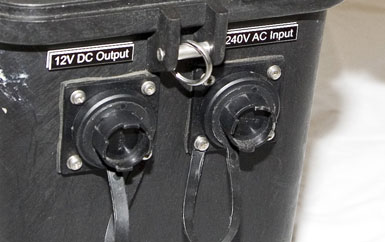

PowerCore – Portable Power Supply

The PowerCore Energy Storage and Management System is a portable 12v non-hazardous, intrinsically safe, lithium battery solution and accessories.

PowerCore offers double the ‘run-time’ and less than half the weight of similar sized lead-acid batteries, and with no mirror effect, the batteries can be recharged up to 3,500 times.

Built-in battery management allows you to see the remaining battery life. An SMS module option will allow you to see the remaining battery life, without the need to go to the battery location.

Applications

The PowerCore battery energy storage and management system can be used for a wide range of applications and are ideal for long-term surveillance operations.

Specification

General:

Operating Temperature: -10ºC to 50ºC
Storage Temperature: -40ºC to 50ºc
Maximum Temperature: DO NOT EXPOSE to temperatures greater than 60ºV

Performance:

Output Current (continuous): 30A Max Continuous (80A/30 Seconds)
Operational Voltage: Nominal 12V DC (Low Volt Cut Out = 10V DC)
Battery Capacity: 40Ah
Energy Density: 84Wh/kg or 110Wh/l
Battery Type: Lithium-Ion, Phosphate Cathode Technology
Cyclic Life: >2000 Cycles at 80% Depth of Discharge
Memory Effect: None – No loss of capacity at partial depths of discharge / Charge
Safety: Built in Electronic Protection – No Thermal Runaway

External:

Colour: Black
Material: Ultra High Impact Copolymer
Handling: Rubberised Handles
Protection: Water and Dust Resistant, Crushproof, Corrosion Proof
Overall Weight: 12.6KG
Dimensions (HxDxL): 430mm x 244mm x 341mm

Mains Charging:

Input Voltage Tolerance: 195 – 265V AC
Input Frequency Tolerance: 50-60Hz
Charging Current (to battery): 10A @ Nominal 12VDC
Power Factor Correction: PF: 0.98
Charge Control: 3 Stage

Vehicle Charging:

Switch on Voltage: 13.0V DC
Charging Current (To Battery): 15A Max
Protection: Thermal, Over Current

Part Numbers:

TEL-HP-0005 Powercore R-12v 40Ah (ncs 12v/230V charging cables)

Product data sheets

PowerCore
