• Full duplex line-rate encryption at up to 1Gbps
• Cut-through architecture for minimum latency
• Supports Line or Multipoint connections
• Supports Unicast and Multicast traffic
• Certified to Common Criteria EAL4+ security level
• Certified to FIPS 140-2 level 3 security requirements
• Bump in the wire design for easy installation
• Conforms to IEEE802.3 specifications

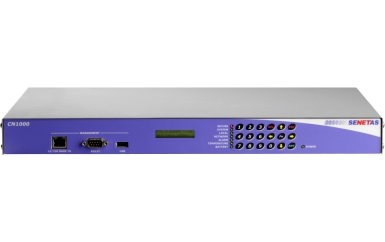

Senetas CN1000 Ethernet encryptors are high performance encryption platforms that provide maximum security within modern Ethernet networks. The units can be configured at speeds of 10Mbps, 100Mbps, and 1Gpbs and support the layer 2 protocol in point to point or multipoint topologies.
MORE BENEFITS
• Provides standards based certificates and key management
• Uses the secure AES 256 bit encryption algorithm
• CFB or Counter mode encryption with synchronisation
• VLAN, MPLS transparency allowing flexible configuration
• Hands-off automated key management
• Standards based trust model using X.509 certificate authentication
• Centralised CypherManager configuration and management system
• Tamper resistant and tamper evident enclosure
• Network connections via selected SFP and RJ45 interfaces
• Interoperable with Senetas CS10, CS100 and CN3000 series Ethernet encryptors
The CN1000 provides users with flexible encryption that addresses the needs of the largest enterprises that have a requirement to secure sensitive information traversing the network. The system can be used to secure point to point links or used in a meshed network of up to 509 interoperable units.
The unit operates in full-duplex mode at full line speed without loss of packets. Latency is not effected by packet size and is less than 7 microseconds per unit at 1Gbps.
Cryptography
AES encryption algorithm
256 bit session and master keys
CFB or Counter mode encryption
Key Management
ATM Forum V1.1 specification
X.509 certificate authentication
RSA Public key Infrastructure
Periodic automatic key updates
Master and Session keys
Performance
Auto-negotiation of line speed
Speed of up to 1Gbps
Frame size – 10,000 bytes
Latency of less than 7 microseconds/unit at 1 Gbps
(19 microsec at 100Mbps, 150 microsec at 10Mbps)
Management
CypherManager element manager
IPv4 and IPv6 management support
Automatic encryptor discovery
Latency of less than 7 microseconds/unit at 1 Gbps
SNMPv3 control, SNMPv1 monitoring
Out-of-band and Inband management
Alarm, Event, and Audit logs
SNMP traps and monitoring
RS232 local console (CLI)
Certification
FIPS 140-2 level 3
Common Criteria EAL4+ Front Panel
LED’s for interface, security, temperature, alarms, power.
20 char LCD display
Keypad (0-9, and data entry/edit)
RJ45 and DB9 Management connectors
Rear Panel
SFP connector cages
RJ45 connectors
IEC13 Power socket
Installation
Size – 482mm (19”), 42mm (1U), 380mm (WxHxD)
Weight: – 6 Kg
0o to 40oC operating temperature
0 to 80% RH at 40oC operating
Shipping/Storage
Size – 560mm, 120mm, 430mm, (WxHxD)
Weight – 6.5Kg
Max temperature 40oC, 95% RH at 400
Physical Security
Tamper proof Key and user password storage
Tamper resistant/evident metal case
Anti probing barriers
Power Requirements
90-240 VAC / 47-63 Hertz
60 watts
Regulatory
Emissions – FCC Part 15 Class B
RoHS compliant
Other – CE and N3912
