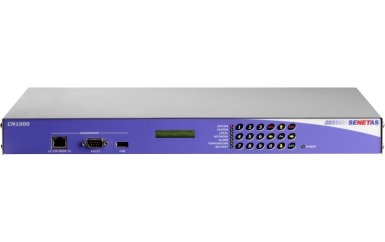

Senetas CN1000 Fibre Channel encryptors

Benefits

• Full duplex line-rate encryption at 1, 2 or 4 Gbps without packet expansion
• Certified to Common Criteria EAL4+ security level
• Certified to FIPS 140-2 level 3 security requirements
• Bump in the wire design for easy installation
• Supports Single and Multimode optical interfaces
• Cut-through architecture for minimum latency
• Provides standards based certificates and key management
• Uses the secure AES encryption algorithm with a 256 bit key

Request a demo

Overview

Senetas CN1000 Fibre Channel encryptors are high performance encryption platforms that provide security of traffic between data centres. The platform is used to secure Storage Area Networks (SAN’s) and supports data transfer at 1, 2, or 4 Gbps.

MORE BENEFITS
• Hands-off automated key management
• Standards based trust model using X.509 certificate authentication
• Centralised CypherManager configuration and management system
• Tamper resistant and tamper evident enclosure

Applications

The CN1000 Fibre Channel encryptor addresses the needs of large enterprises that have a requirement to secure sensitive information within Storage Area Networks.

Latency is not effected by packet size and at 4 Gbps is 0.75 microseconds per unit.

Specification

Cryptography
AES encryption algorithm
CFB mode encryption
256 bit session and master keys

Key Management
Based on ATM Forum V1.1 security specification
X.509 certificate authentication
RSA Public key Infrastructure
Periodic automatic key updates without traffic interruption
Master and Session keys

Performance
Full duplex point to point operation
Network interface for 1, 2 or 4 Gbps
Unit latency of 0.75 microseconds max at 4 Gbps

Management
CypherManager role based element manager
IPv4 and IPv6 management support
Automatic encryptor discovery
Latency of less than 7 microseconds/unit at 1 Gbps
SNMPv3 control, SNMPv1 monitoring
Out-of-band and Inband management
Alarm, Event, and Audit logs
SNMP traps and monitoring
RS232 local console (CLI)

Certification
FIPS 140-2 level 3
Common Criteria EAL4+ Front Panel
LED’s for interface, security, temperature, alarms, power.
Two line 20 char LCD display
Keypad (0-9, and data entry/edit)
RJ45 and DB9 Management connectors

Rear Panel
SFP optical connector cages
IEC13 Power socket

Installation
Size – 482mm (19”), 42mm (1U), 380mm (WxHxD)
Weight: – 6 Kg
0o to 40oC operating temperature
0 to 80% RH at 40oC operating

Shipping/Storage
Size – 560mm, 120mm, 430mm, (WxHxD)
Weight – 6.5Kg
Max temperature 40oC, 95% RH at 400

Physical Security
Tamper proof Key and user password storage
Tamper resistant/evident metal case
Anti probing barriers

Power Requirements
90-240 VAC / 47-63 Hertz
40 watts

Regulatory
Emissions – FCC Part 15 Class B
RoHS compliant
Other – CE and N3912
