• Full duplex encryption at up to 10 Mbps
• Certified to Common Criteria EAL4+ security level
• Bump in the wire design for easy installation
• Supports Line or Multipoint connections
• Conforms to IEEE802.3 specifications
• Uses the secure AES 256 bit encryption algorithm
• Supports SEED, Aria, Camellia and custom algorithms

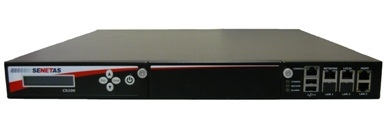

Senetas CS100 Ethernet encryptors are flexible encryption platforms designed as 1U high, 19” rack mounting systems that can be integrated into modern Ethernet networks. The units can encrypt either layer 2 (Ethernet) or layer 3 (IPSec) protocols and can be configured point to point or multipoint operation at speeds of up to 100 Mbps.
The CS100 provides users with flexible encryption that addresses the needs of small to medium sized organisations that have a requirement to transfer sensitive information between branch offices. The units can be used to secure point to point links or used in a meshed network of up to 509 interoperable units.
The unit operates in full-duplex mode at full line speed without loss of packets. Latency is a function of transmission speed and packet size and is typically 1 millisecond.
OTHER BENEFITS
• Centralised CypherManager configuration and management system
• Tamper resistant and tamper evident enclosure
• Interoperable with Senetas CS10 and CN1000 Ethernet encryptors
• Switchable between layer 2 and layer 3 (IPSec) modes.
• IPSec mode implementsSelf synchronising CFB mode minimises traffic disruption
• VLAN, MPLS transparency allowing flexible configuration
• Hands-off automated key management
• Standards based trust model using X.509 certificate authentication ESP tunnel
Cryptography
AES encryption algorithm
128 or 256 bit session keys
Self synchronising CFB mode
256 bit master keys
Optional algorithms (SEED, Aria, Camellia, custom)
Key Management
ATM Forum V1.1 specification
X.509 certificate authentication
RSA Public key Infrastructure
Periodic automatic key updates
Master and Session keys
Performance
Auto-negotiation of line speed
Speed of up to 100Mbps
Latency of 1 millisecond (typical)
Management
CypherManager element manager
IPv4 and IPv6 management support
Automatic encryptor discovery
SNMPv3 control, SNMPv1 monitoring
Out-of-band and Inband management
Alarm, Event, and Audit logs
SNMP traps and monitoring
RS232 local console (CLI)
Certification
Common Criteria EAL4+ Front Panel
LCD status display
LED’s for interface, security, temperature, alarms, power.
Power Switch
RJ45 Local and Network connections
RJ45 Management connections
Rear Panelarms, power.ont>
Power socket
Installation
Size – 435mm (19”), 44mm (1U), 480mm (WxHxD)
Weight: – 6.8 kg
0o to 40oC operating temperature
0 to 80% RH at 40oC operating
Shipping/Storage
Size – 580mm, 200mm, 580mm, (WxHxD) – 2 units
Weight – 7.9Kg (1 unit) – 2.0 Kg (2 units)
Max temperature 40oC, 95% RH at 400
Physical Security
Tamper proof Key storage
Tamper resistant/evident metal case
Anti probing barriers
Power Requirements
90-240 VAC / 47-63 Hertz
70 watts maximum
IEC 13 connector
Regulatory
Emissions – FCC Part 15 Class B
RoHS compliant
Other – CE and N3912
